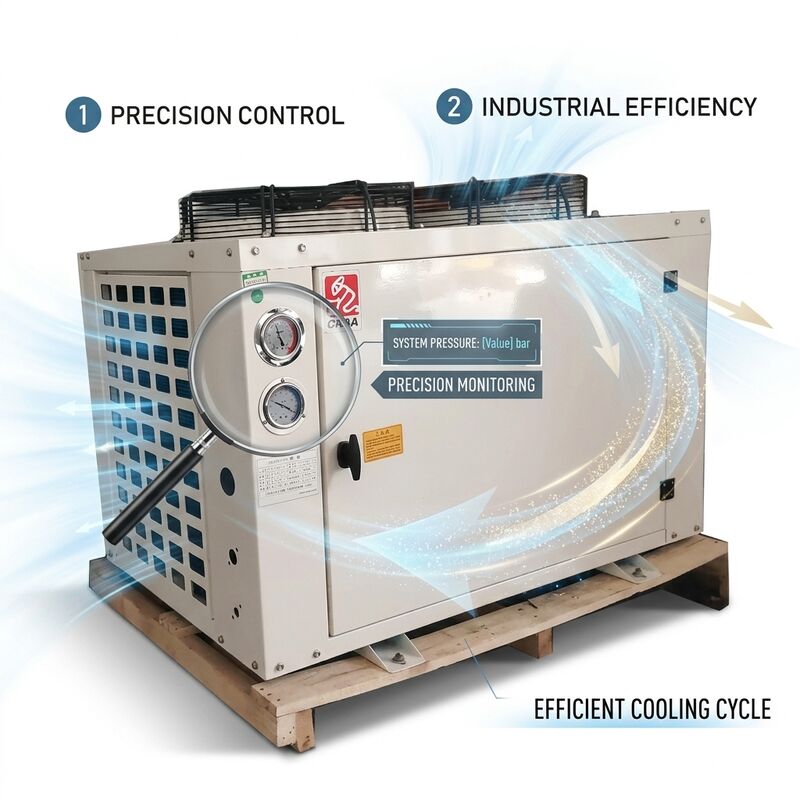

The 2CES-4Y-LT is a premium Semi Hermetic Condensing Unit engineered by KUB Refrigeration Equipment Co., Ltd, designed to deliver exceptional cooling performance for commercial and industrial cold storage applications. This unit integrates a high-efficiency semi hermetic reciprocating compressor with a perfectly matched air-cooled condenser, providing a compact yet powerful refrigeration solution.
Manufactured in Shanghai, China, with over 20 years of refrigeration engineering expertise, the 2CES-4Y-LT combines advanced compressor technology with robust construction to ensure long-term reliable operation. Every unit undergoes rigorous factory testing including pressure tests, electrical safety checks, and performance validation before shipment.
| Parameter | Specification |
|---|---|
| Model | 2CES-4Y-LT |
| Compressor Type | Semi Hermetic Reciprocating |
| Horsepower | 4HP |
| Cylinders | 2 |
| Displacement | 12.1 m³/h |
| Power Supply | 380V/3PH/50Hz |
| Evaporating Temp Range | -35°C to -10°C |
| Cooling Capacity @ -25°C | 3810W |
| Cooling Capacity @ -15°C | 6120W |
| Refrigerant | R22 / R404a / R507 |
| Condenser Type | Air Cooled Finned |
| Number of Fans | 2 * 350mm Axial |
| Suction Line | 22mm (7/8") |
| Liquid Line | 12mm (1/2") |
| Net Weight | 180kg |
| Dimensions (L*W*H) | 1060 * 680 * 720mm |
| Oil Type | B5.2 Refrigeration Oil |
| Certification | CE |
| Warranty | 1 Year |
Ideal for freezer rooms, blast freezers, low temperature cold storage warehouses, frozen food processing facilities, ice cream storage, pharmaceutical cold chain logistics, and any application requiring stable sub-zero temperature control.
