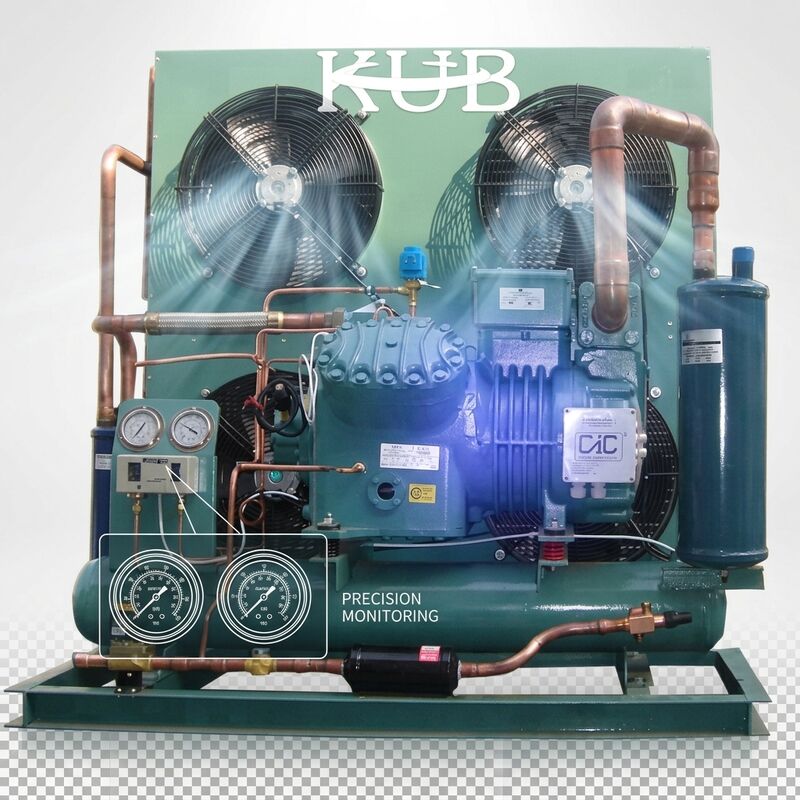

Quiet Low Noise Semi Hermetic Condensing Unit 4VES-10Y-SL
Ultra-quiet operation at ≤62 dB(A)—specially engineered for noise-sensitive installations in urban areas, supermarkets, hospitals, and residential-adjacent cold rooms.
18600W @ -15°C
Cooling Capacity
R22/R404a/R507
Refrigerant
380V/3PH/50Hz
Power Supply
Product Introduction
The 4VES-10Y-SL is a premium Semi Hermetic Condensing Unit engineered by KUB Refrigeration Equipment Co., Ltd, designed to deliver exceptional cooling performance for commercial and industrial cold storage applications. This unit integrates a high-efficiency semi hermetic reciprocating compressor with a perfectly matched air-cooled condenser, providing a compact yet powerful refrigeration solution.
Manufactured in Shanghai, China, with over 20 years of refrigeration engineering expertise, the 4VES-10Y-SL combines advanced compressor technology with robust construction to ensure long-term reliable operation. Every unit undergoes rigorous factory testing including pressure tests, electrical safety checks, and performance validation before shipment.
Features & Characteristics
- High-Efficiency Semi Hermetic Compressor: Serviceable reciprocating design with precision-machined components for extended service life and easy field maintenance.
- Optimized Condenser Design: High-efficiency finned tube condenser with large-diameter axial fans delivers superior heat rejection and stable condensing pressure.
- Multi-Layer Safety Protection: Integrated controller with phase loss/sequence protection, high/low pressure cutouts, oil pressure safety switch, and motor overload protection.
- Wide Refrigerant Compatibility: Engineered to operate with multiple refrigerants, providing flexibility for different regional requirements and application needs.
- Low Vibration Operation: Optimized mass balance design with vibration isolation mounts ensures quiet, stable operation suitable for various installation environments.
- Factory Pre-Charged & Tested: Pre-wired control panel, pre-piped connections, and comprehensive factory testing minimize on-site installation time.
- Weather-Resistant Construction: Durable powder-coated steel frame and weather-protected electrical enclosure suitable for indoor and sheltered outdoor installation.
- Energy-Efficient Motor: High-efficiency motor with broadband characteristics delivers optimal performance at both full-load and part-load conditions.
Why Choose KUB?
- 20+ Years of Expertise: KUB has specialized in refrigeration equipment manufacturing since 2000, serving customers in over 30 countries worldwide.
- Rigorous Quality Control: Every unit undergoes comprehensive factory testing including pressure tests, electrical safety verification, and full-load performance runs.
- Global Certifications: Our products meet CE standards and comply with international refrigeration safety and performance requirements.
- One-Year Comprehensive Warranty: Full coverage on manufacturing defects with responsive after-sales support and readily available spare parts.
- Customization Capability: Our engineering team can customize units to meet specific voltage, refrigerant, and application requirements.
- Competitive Value: Factory-direct pricing with premium component quality delivers exceptional return on investment for cold storage operators.
- Fast Global Shipping: Efficient logistics network ensures timely delivery to ports worldwide with professional export packaging.
Technical Specifications
| Parameter | Specification |
|---|
| Model | 4VES-10Y-SL |
| Compressor Type | Semi Hermetic Reciprocating |
| Horsepower | 10HP |
| Cylinders | 4 |
| Displacement | 34.7 m³/h |
| Noise Level | ≤62 dB(A) @ 1m |
| Power Supply | 380V/3PH/50Hz |
| Evaporating Temp Range | -20°C to +5°C |
| Cooling Capacity @ -15°C | 18600W |
| Cooling Capacity @ -5°C | 24180W |
| Refrigerant | R22 / R404a / R507 |
| Condenser Type | Air Cooled Finned (Low-Noise) |
| Number of Fans | 2 * 450mm Low-RPM Axial |
| Suction Line | 28mm (1-1/8") |
| Liquid Line | 16mm (5/8") |
| Sound Features | Vibration Isolation + Compressor Acoustic Jacket |
| Optional | Full Acoustic Enclosure Available |
| Net Weight | 240kg |
| Dimensions (L*W*H) | 1350 * 800 * 950mm |
| Oil Type | B5.2 Refrigeration Oil |
| Certification | CE |
| Warranty | 1 Year |
Applications
Ideal for supermarket and convenience store cold rooms, hotel and restaurant walk-in coolers, hospital and laboratory cold storage, residential-area commercial refrigeration, office building server room cooling, and any installation governed by strict noise regulations.
Frequently Asked Questions
Q: How is the low noise level achieved?
A: Through a combination of optimized compressor mass balance, special cylinder head design for reduced gas pulsation, precision-balanced crankshaft, vibration isolation mounts, acoustic insulation jacket, and low-RPM large-diameter condenser fans.
Q: What does 62 dB(A) sound like in real terms?
A: 62 dB(A) is comparable to normal conversation level or background office noise. It is significantly quieter than standard condensing units which typically operate at 70-78 dB(A).
Q: Can an acoustic enclosure reduce noise further?
A: Yes, our optional acoustic enclosure can reduce noise by an additional 8-12 dB(A), bringing the unit below 55 dB(A). Contact us for enclosure specifications and pricing.
Q: Does the noise reduction affect cooling performance?
A: No, the noise reduction features are designed to maintain full cooling capacity. The low-RPM fans are larger diameter to deliver the same airflow at lower speed and noise.
Q: Is this unit suitable for night-time operation in residential areas?
A: Yes, at ≤62 dB(A) the unit meets most municipal noise ordinances for commercial equipment in residential-adjacent zones. The optional acoustic enclosure provides additional assurance for the strictest noise regulations.
Packaging & Shipping
- Packaging: Export-standard plywood case/pallet with moisture-proof wrapping and reinforced corner protection.
- Shipping Port: Shanghai/Ningbo, China
- Delivery Time: 15-25 working days after order confirmation, depending on configuration and quantity.
