Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor and 380V 50Hz Power Supply with 1 Year Warranty
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 전압 | 380V 50Hz | 힘 | 2.5 kW |
|---|---|---|---|
| 무게 | 600kg | 냉각제 | R-404A |
| 작업 온도 | 7 급 | 냉각 용량 | 9.3kW ~ 186kW |
| 압축기 전원 | 2.2kW ~ 9.0*5kW | 컨덴서형 | 쉘과 튜브 |
| 물 펌프 전력 | 0.37kW ~ 3.75kW | 펌프 압력 | 0.18Mpa |
| 증발기 유형 | 코일 /쉘 및 튜브 | 차가운 물 흐름 | 1.8m³/시 ~ 33m³/시 |
| 냉각수 흐름 | 2.16m³/시 ~ 37.8m³/시 | 파이프 직경 | 3/4" ~ 3" |
| 치수 | 900x560x900mm ~ 2300x750x1700mm | ||
| 강조하다 | 3HP to 50HP Industrial Water Chiller,380V 50Hz Water Cooled Condensing Unit,1 Year Warranty Water Chiller |
||
제품 설명

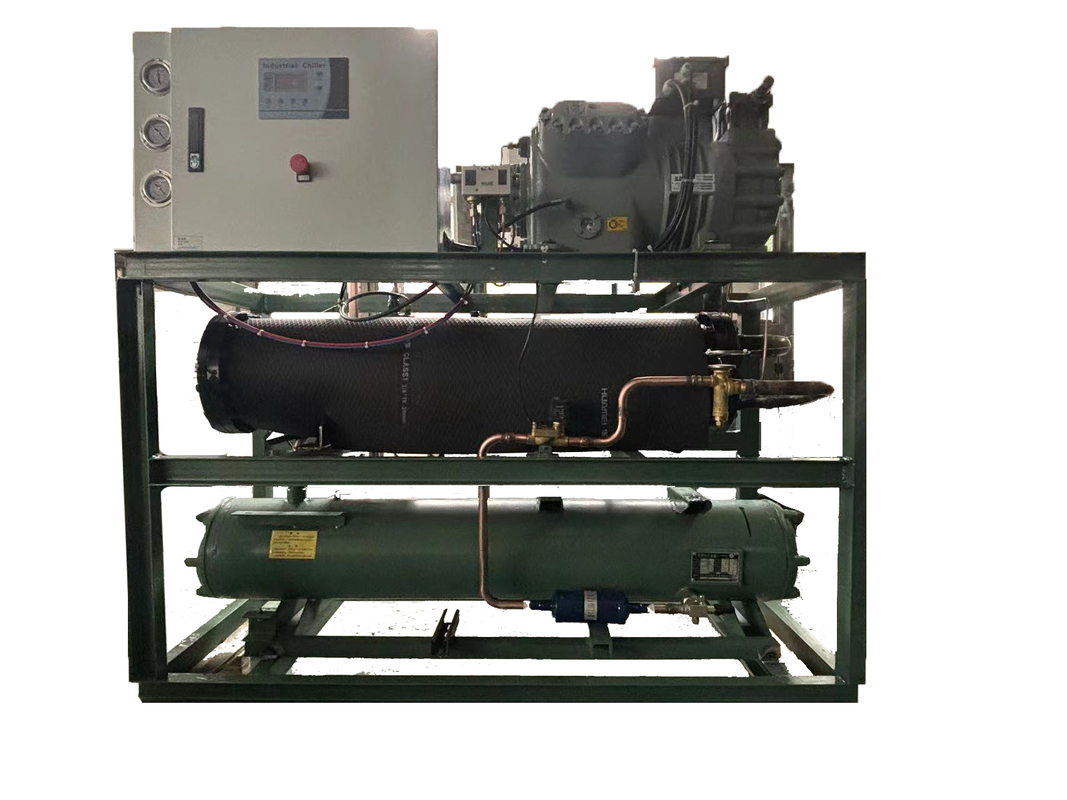

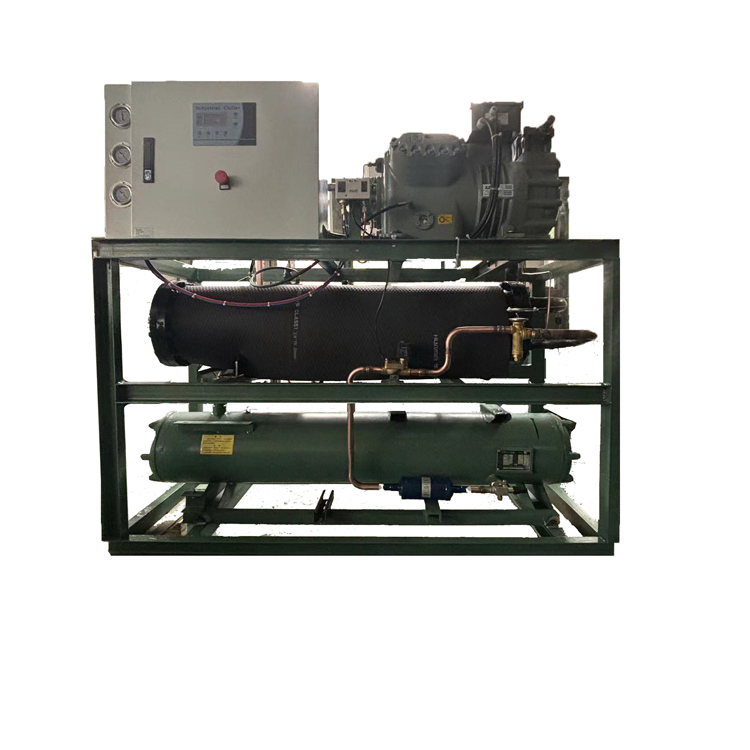

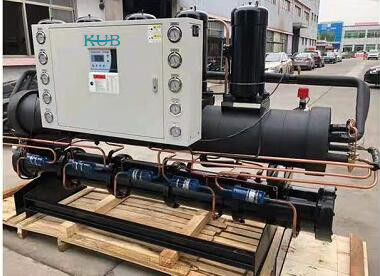

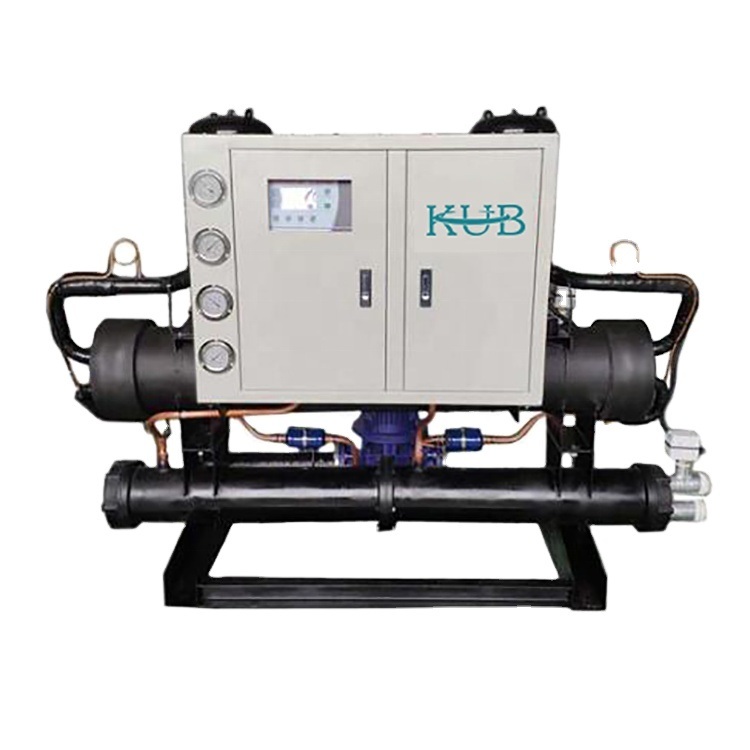

Kub OEM Industrial Water Chiller with 3HP to 50HP Semi Hermetic Compressor
The Kub OEM water cooled chiller features a semi-hermetic compressor with power options ranging from 3HP to 50HP. This industrial-grade chiller includes all core components for immediate operation.
Technical Specifications
3HP to 15HP Models
| Model of Machine | 3HP | 4HP | 5HP | 6HP | 8HP | 10HP | 12HP | 15HP |
|---|---|---|---|---|---|---|---|---|
| Cooling capacity (kw) | 9.3 | 12.4 | 15.5 | 18.6 | 24.8 | 31 | 37.2 | 46.5 |
| Cooling capacity (Kcal/hr) | 7998 | 10664 | 13330 | 15996 | 21328 | 26660 | 31992 | 39990 |
| Compressor power (kw) | 2.2 | 3.0 | 3.75 | 4.5 | 3.0×2 | 3.75×2 | 4.5X2 | 5.5x2 |
| Voltage | 3-380V-50HZ | |||||||
| Refrigerant | R22 | |||||||
| Condenser cooling water (m³/hr) | 2.16 | 2.8 | 3.6 | 4.3 | 5.7 | 7.2 | 8.6 | 10.8 |
| Cooling pipe diameter | 3/4" | 3/4" | 1" | 1" | 1-1/2" | 1-1/2" | 2" | 2" |
| Water pump power (kw) | 0.37 | 0.37 | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 1.5 |
| Pressure (Mpa) | 0.18 | |||||||
| Chilled water (m³/hr) | 1.8 | 2.4 | 3.0 | 3.6 | 4.8 | 6.0 | 7.2 | 9.0 |
| Frozen water pipe diameter | 3/4" | 3/4" | 1" | 1" | 1-1/2" | 1-1/2" | 2" | 2" |
| Dimensions (L×W×H mm) | 900×560×900 | 900×560×900 | 900×560×900 | 1000×560×900 | 1240×670×1400 | 1240×670×1500 | 1240×670×1500 | 1400×750×1500 |
20HP to 60HP Models
| Model of Machine | 20HP | 25HP | 30HP | 36HP | 40HP | 45HP | 50HP | 60HP |
|---|---|---|---|---|---|---|---|---|
| Cooling capacity (kw) | 62 | 77.5 | 93 | 111.6 | 124 | 139.5 | 155 | 186 |
| Cooling capacity (Kcal/hr) | 55320 | 66650 | 79980 | 95976 | 106640 | 119970 | 133300 | 159960 |
| Compressor power (kw) | 7.5*2 | 9.0*2 | 7.5*3 | 9.0*3 | 7.5*4 | 7.5*2+9.0*2 | 9.0*4 | 9.0*5 |
| Voltage | 3-380V-50HZ | |||||||
| Refrigerant | R22 | |||||||
| Condenser cooling water (m³/hr) | 13.8 | 16.2 | 18.9 | 22.6 | 25.2 | 28.3 | 31.5 | 37.8 |
| Cooling pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" |
| Water pump power (kw) | 2.2 | 2.2 | 3.0 | 3.0 | 3.75 | 3.75 | 3.75 | 3.75 |
| Pressure (Mpa) | 0.18 | |||||||
| Chilled water (m³/hr) | 11.5 | 13.5 | 16.5 | 19.5 | 22 | 25 | 27.5 | 33 |
| Frozen water pipe diameter | 2" | 2-1/2" | 2-1/2" | 2-1/2" | 2-1/2" | 3" | 3" | 3" |
| Dimensions (L×W×H mm) | 1500×630×1500 | 1600×630×1500 | 1820×650×1650 | 1900×650×1650 | 2000×700×1700 | 2100×700×1700 | 2200×720×1700 | 2300×750×1700 |
Note: The above data represents standard configurations. Custom configurations are available upon request. Cooling capacity is based on ice water inlet temperature of 12°C (exit 7°C) and cooling water inlet temperature of 30°C (outlet 35°C).
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the compressor agent but manufacture condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What payment methods do you accept?
A3: We accept T/T, Paypal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What is your delivery time and loading port?
A4: Typical lead time is 35-60 days after payment. Loading port is usually Shanghai, but other Chinese ports are available upon request.
Q5: Can I request a sample?
A5: Samples are available at cost.
Q6: How do you ship goods and what are transit times?
A6: We ship via LCL/FCL by sea (≈30 days), air (5-7 days), or express. Transit times vary by method.
Packaging & Warranty
Custom Solutions: We provide customized designs for refrigeration, cold storage, agriculture, food service, and chemical applications.
Warranty: KUB offers a comprehensive 1-year warranty. We guarantee product quality and provide full support for any issues.
