Industrial Water Chiller with -40degree Cold Air Semi Hermetic Compressor 2HP to 50HP and 380V/3ph/50Hz Power Supply
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 온도 범위 | -20-8c, 8-18c, 18-20c, 20-25c | 무게 | 350kg |
|---|---|---|---|
| 압축기 유형 | 반밀폐적입니다 | 전원 공급 장치 | 380V/3ph /50Hz |
| 냉각제 | R-404A | 냉각 용량 | 5.6~140kW |
| 전압 | 1N-220V-50HZ, 3N-380V-50HZ | 소음 수준 | 68~75dBA |
| 압축기 전원 | 1.5-9KW | 총 전력 | 2.1-43.5KW |
| 증발기 유형 | 구리 튜브 슬리브 알루미늄 핀 | 컨덴서형 | 구리 튜브 슬리브 알루미늄 핀 |
| 공기 출력 | 400-10000m3/h | 배출구 직경 | 100-200 밀리미터 |
| 모터 | 0.37-7.5KW | ||
| 강조하다 | -40degree Cold Air Water Chiller,2HP to 50HP Industrial Chiller,380V/3ph/50Hz Air Cooled Chiller |
||
제품 설명

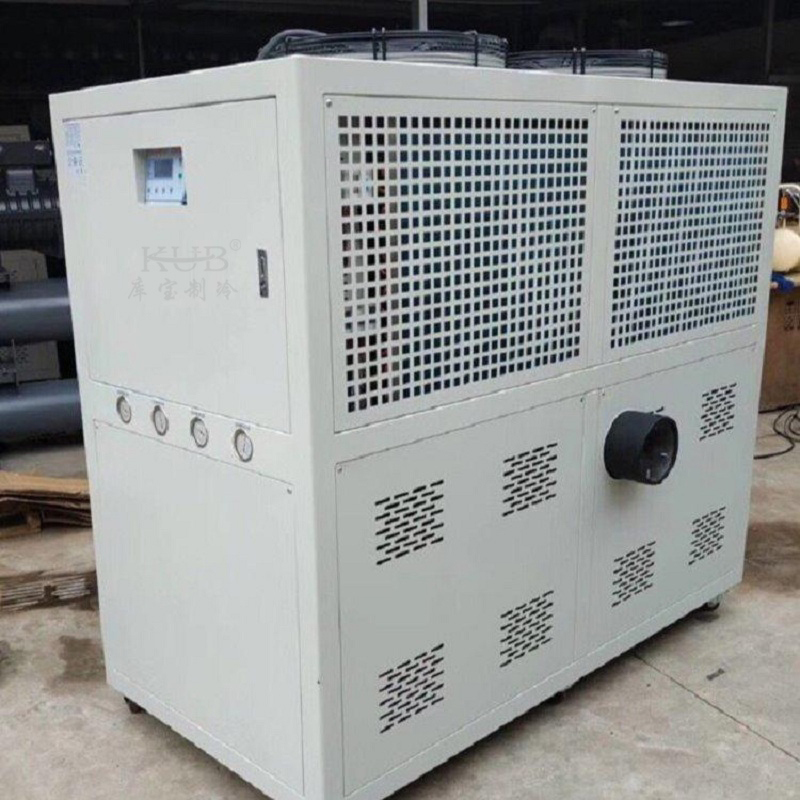

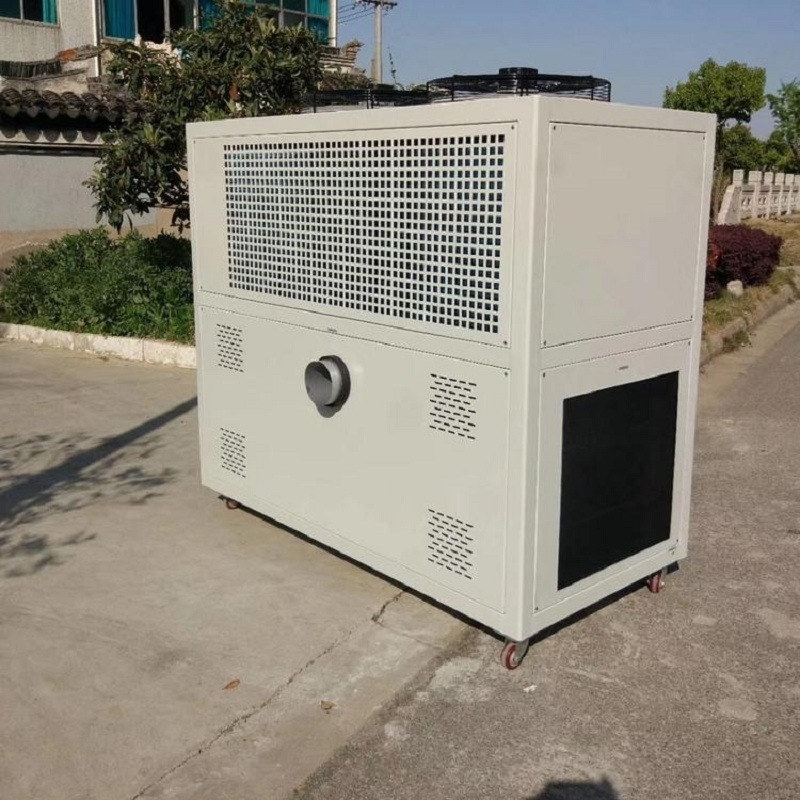

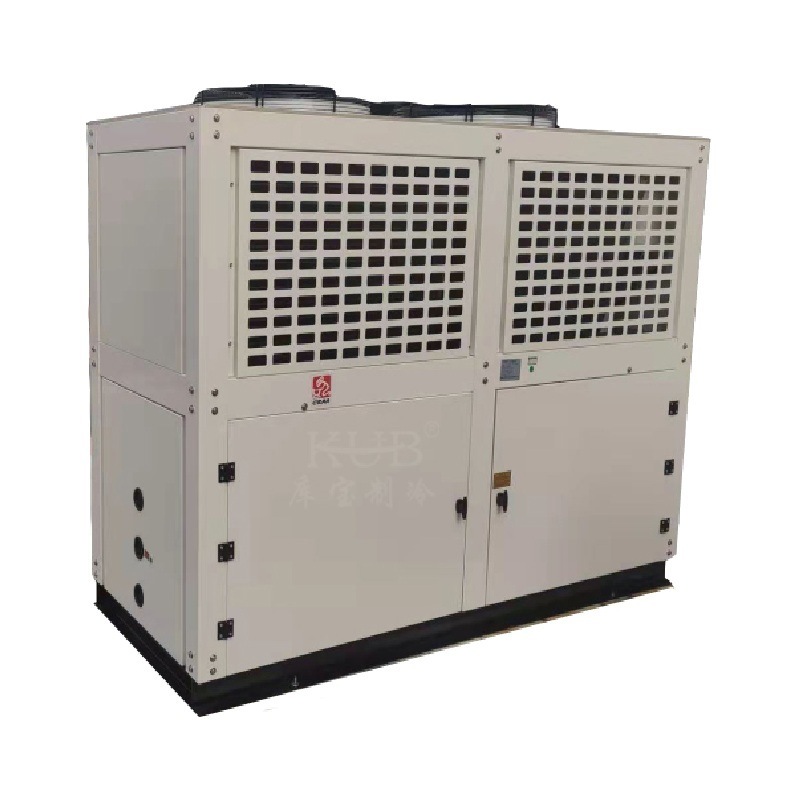

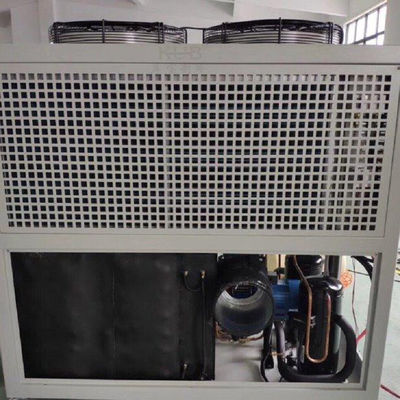

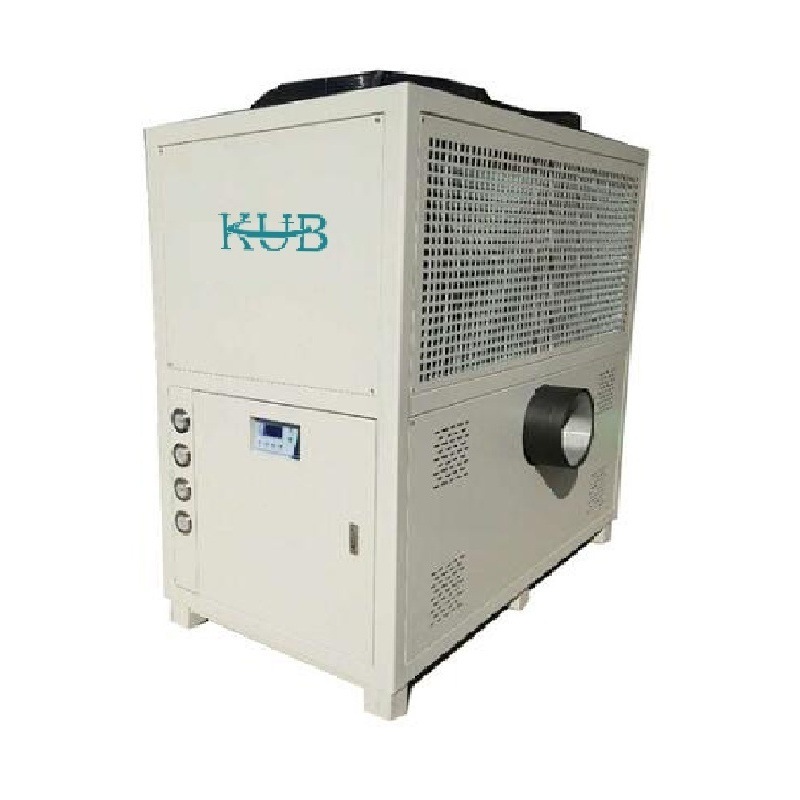

KUB OEM -40°C Cold Air Chiller with Semi-Hermetic Compressor (2HP to 50HP Models)
The KUB OEM -40°C Cold Air Chiller features a semi-hermetic compressor and is available in capacities ranging from 2HP to 50HP. This industrial-grade chiller delivers precise temperature control with adjustable output temperatures from 5-20°C (±3°C deviation).
Technical Specifications
2HP to 10HP Models
| Model | 2HP | 3HP | 4HP | 5HP | 8HP | 10HP |
|---|---|---|---|---|---|---|
| Cooling capacity (kW) | 5.6 | 8.4 | 11.2 | 14 | 22.4 | 28 |
| Cooling capacity (Kcal/hr) | 4816 | 7226 | 9632 | 12040 | 24080 | - |
| Voltage | 1N-220V-50HZ | 3N-380V-50HZ | ||||
| Margin blast pressure (Pa) | 300 | 300 | 300 | 500 | 500 | 500 |
| Noise (dBA) | 68 | 68 | 68 | 72 | 72 | 72 |
| Compressor (KW) | 1.5 | 2.25 | 3.0 | 3.75 | 3.0*2 | 3.75*2 |
| Gross power (KW) | 2.1 | 2.9 | 4.1 | 5.1 | 7.9 | 9.8 |
| Refrigerant | R22 | |||||
| Evaporator Type | Copper tube sleeve aluminum fin | |||||
| Condenser cooling air volume (m³/h) | 2000 | 3000 | 4000 | - | - | - |
| Air blower output (m³/h) | 400 | 600 | 800 | 1000 | 1600 | 2000 |
| Outlet diameter (mm) | 100 | 100 | 125 | 125 | 150 | 150 |
| Electric motor (KW) | 0.37 | 0.37 | 0.75 | 0.75 | 1.1 | 1.5 |
| Dimensions (L×W×H mm) | 850×500×800 | 1000×600×880 | 1000×600×880 | 1200×600×960 | 1320×750×1450 | 1400×780×1550 |
| Weight (kg) | 80 | 110 | 160 | 180 | 300 | 320 |
12HP to 50HP Models
| Model | 12HP | 16HP | 20HP | 30HP | 40HP | 50HP |
|---|---|---|---|---|---|---|
| Cooling capacity (kW) | 34 | 42 | 56 | 84 | 112 | 140 |
| Cooling capacity (Kcal/hr) | 28896 | 36120 | 48160 | 72240 | 96320 | 120400 |
| Voltage | 3N-380V-50HZ | |||||
| Margin blast pressure (Pa) | 500 | 500 | 550 | 550 | 600 | 650 |
| Noise (dBA) | 72 | 72 | 75 | 75 | 75 | 75 |
| Compressor (KW) | 4.5*2 | 5.5*2 | 7.5*2 | 7.5*3 | 7.5*4 | 9*4 |
| Gross power (KW) | 10.5 | 11.2 | 18 | 26.5 | 35.5 | 43.5 |
| Refrigerant | R22 | |||||
| Condenser cooling air volume (m³/h) | 12000 | 15000 | 20000 | 30000 | 40000 | 50000 |
| Air blower output (m³/h) | 2400 | 3000 | 4000 | 6000 | 8000 | 10000 |
| Outlet diameter (m) | 0.18 | 0.18 | 0.20 | 0.20 | 0.20 | 0.20 |
| Electric motor (KW) | 1.5 | 2.2 | 3.0 | 4 | 5.5 | 7.5 |
| Dimensions (L×W×H mm) | 1500×850×1650 | 1650×850×1650 | 1800×1300×1900 | 1830×1300×1900 | 2100×1500×1900 | 2300×1700×1900 |
| Weight (kg) | 380 | 420 | 650 | 700 | 880 | 1050 |
Key Features
- Semi-hermetic compressor design for durability
- Temperature range: 5-20°C (adjustable, ±3°C deviation)
- Standard side air outlet (top outlet available on request)
- Copper tube sleeve aluminum fin evaporator and condenser
- Centrifugal fan type air blower
- Nylon filter for return air
- Available in 2HP to 50HP models
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are agents for this compressor, but we manufacture condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What about the payment methods & payment terms?
A3: We accept T/T, PayPal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time? Where is the loading port?
A4: Typically 35-60 days after payment. Loading port is usually Shanghai, but other Chinese ports can be arranged.
Q5: Can I have a sample first?
A5: Samples are available at customer's expense.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL or FCL by sea, air, or express. Sea freight takes about 30 days, air/express takes 5-7 days.
Packaging & Warranty
- Customization: Available for refrigeration, cold storage, agriculture, food service, and chemical applications
- Warranty: 1-year comprehensive warranty with quality guarantee and after-sales support
