8HP Water-cooled Condensing Unit 380V 50HZ for Cold Storage
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 전압 | 380V 50Hz | 냉각 용량 | 중간 고온 |
|---|---|---|---|
| 냉각제 | R-404A, R404A | 온도 범위 | +10 ~ -20 |
| 무게 | 250kg | 압축기 유형 | 두루마리, 스크롤 포함 |
| 압축기 모델 | ZB58KQE | 압축기 HP | 8HP |
| 컨덴서형 | 쉘 및 튜브 콘덴서 | 압력 | 16kg |
| 제어 상자 | 포함 | 필터 드라이어 | 큐브 |
| 솔레노이드 밸브 | 포함 | 압력 조절기〔제어기］ | P830E |
| 유면계 | 높고 낮은 | ||
| 강조하다 | 8HP water-cooled condensing unit,380V cold storage condenser,50Hz refrigeration condensing unit |
||
제품 설명

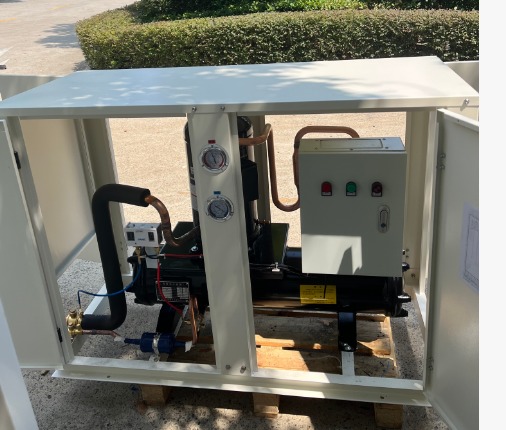

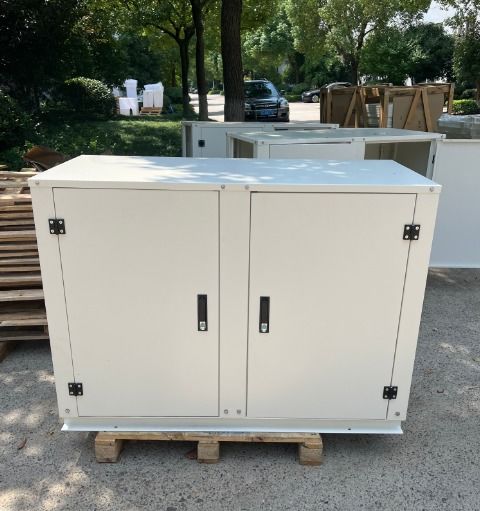

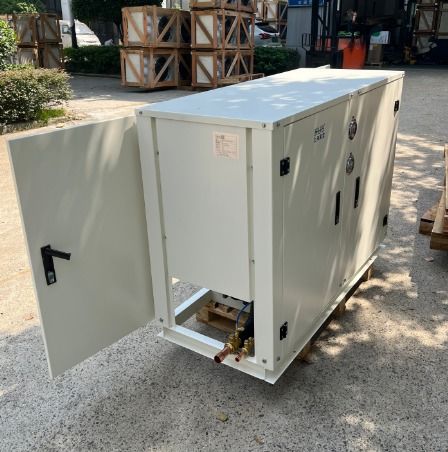

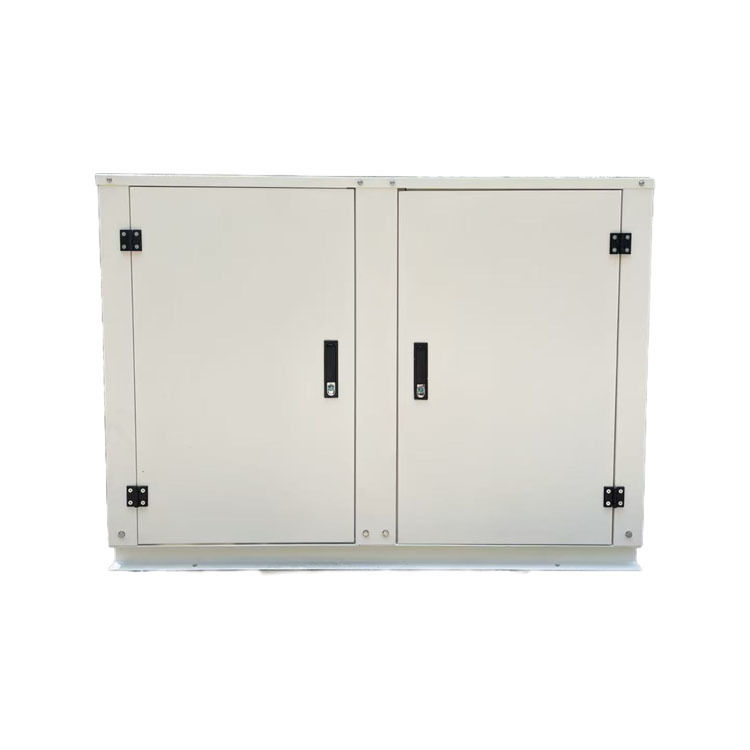

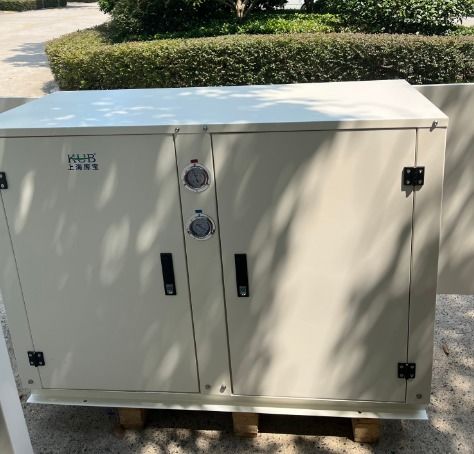

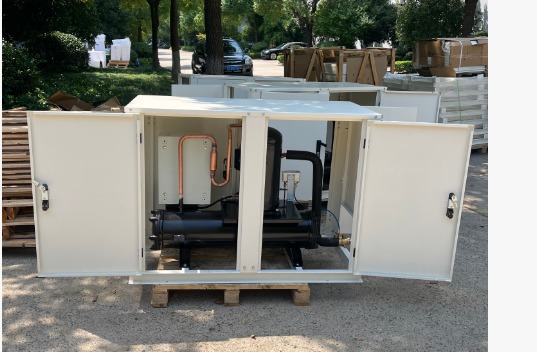

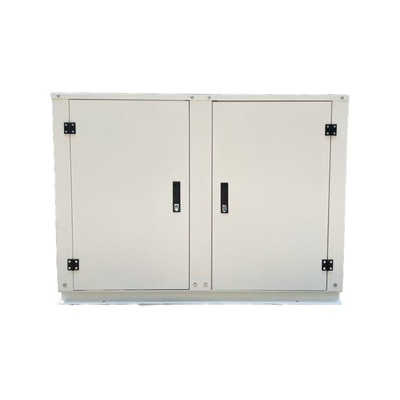

8HP Water-cooled Refrigeration Unit with Sheet Metal Copeland Compressor Condensing Unit With Control Box for Cold Room
This 8HP water-cooled condensing unit from KUB Company is designed for medium temperature cold storage applications. Featuring a ZB58KQE-TFD-558 Copeland compressor using R404A refrigerant, the unit operates at 16KG pressure with stable and reliable performance.
Technical Specifications
| Component | Model/Type | Quantity |
|---|---|---|
| Compressor | ZB58KQE-TFD-558 | 1 |
| Box-type sheet metal | - | 1 |
| Ball valve | - | 2 |
| Water cooled condenser | Shell and tube water condenser 8HP | 1 |
| Filter drier (KUB) | - | 1 |
| Solenoid valve | - | 1 |
| Pressure controller | P830E | 1 |
| Oil gauge (high) | - | 1 |
| Oil gauge (Low) | - | 1 |
| Control box | - | 1 |
The complete system includes shell and tube condenser, filter drier, solenoid valve, and control box with all wiring pre-configured for easy installation.
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the authorized agent for compressors and manufacturers of condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping options include express, air freight, and sea freight.
Q3: What about the payment methods & payment terms?
A3: We accept T/T, Paypal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time? Where is the loading port?
A4: Typical lead time is 35-60 days after payment. Primary loading port is Shanghai, with other Chinese ports available upon request.
Q5: Can I have a sample first?
A5: Samples are available with payment of sample cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL or FCL by sea, air, or express. Transit times are approximately 30 days by sea, 5-7 days by air/express.
Packaging & Shipping
Customization & Warranty
- Custom designs available for refrigeration, cold storage, agriculture, food service, and chemical applications
- Comprehensive 1-year warranty coverage
- Quality guarantee with full responsibility for product performance
