50HP Explosion-Proof Condensing Unit with Piston Compressor 380V
무료샘플과 쿠폰을 위해 나와 연락하세요.
왓츠앱:0086 18588475571
위챗: 0086 18588475571
스카이프: sales10@aixton.com
만약 당신이 어떠한 관심도 가지면, 우리가 24 시간 온라인 도움말을 제공합니다.
x제품 상세 정보
| 무게 | 1500kg | 냉각제 | R404A |
|---|---|---|---|
| 압축기 유형 | 피스톤 | 말 힘 | 50 에이치피 |
| 전압 | 380V/3PH/50Hz | 열 교환 영역 | 480m² |
| 콘덴서 팬 수량 | 3 개 PC | 블레이드 직경 | 630 밀리미터 |
| 공기량 | 3*12420 m³/h | 흡입 파이프 | 54 mm |
| 출구 파이프 | 35mm | 길이 | 3850 밀리미터 |
| 너비 | 1000mm | 키 | 2000mm |
| 핵심 구성 요소 | 압축기 | ||
| 강조하다 | 50HP explosion-proof condensing unit,piston compressor refrigeration unit,380V industrial condensing unit |
||
제품 설명
KUB-FV-50XXM 50HP Explosion-Proof Condensing Unit
Product Overview
The KUB-FV-50XXM is a reliable 50HP explosion-proof condensing unit featuring hot fluorine defrost refrigeration technology. Designed for demanding industrial applications, this unit combines robust construction with efficient performance.
Key Specifications
| Attribute | Value |
|---|---|
| Weight | 1500 KG |
| Refrigerant | R404A |
| Compressor | 50HP piston compressor |
| Voltage | 380V/3Ph/50Hz |
| Warranty | 1 Year |
| After-sales Service | Online support |
| Application | Chemical warehouse |
| Origin | Shanghai |
Technical Specifications
| Model | Horsepower | Voltage | Heat Exchange Area (m²) | Condenser Fan Qty | Blade Diameter (mm) | Air Volume (m³/h) | Suction Pipe (mm) | Outlet Pipe (mm) | Dimensions L×W×H (mm) |
|---|---|---|---|---|---|---|---|---|---|
| KUB-FV-50XXM | 50HP | 380V-3PH-50HZ | 480 | 3 | 630 | 3×12420 | 54 | 35 | 3850×1000×2000 |

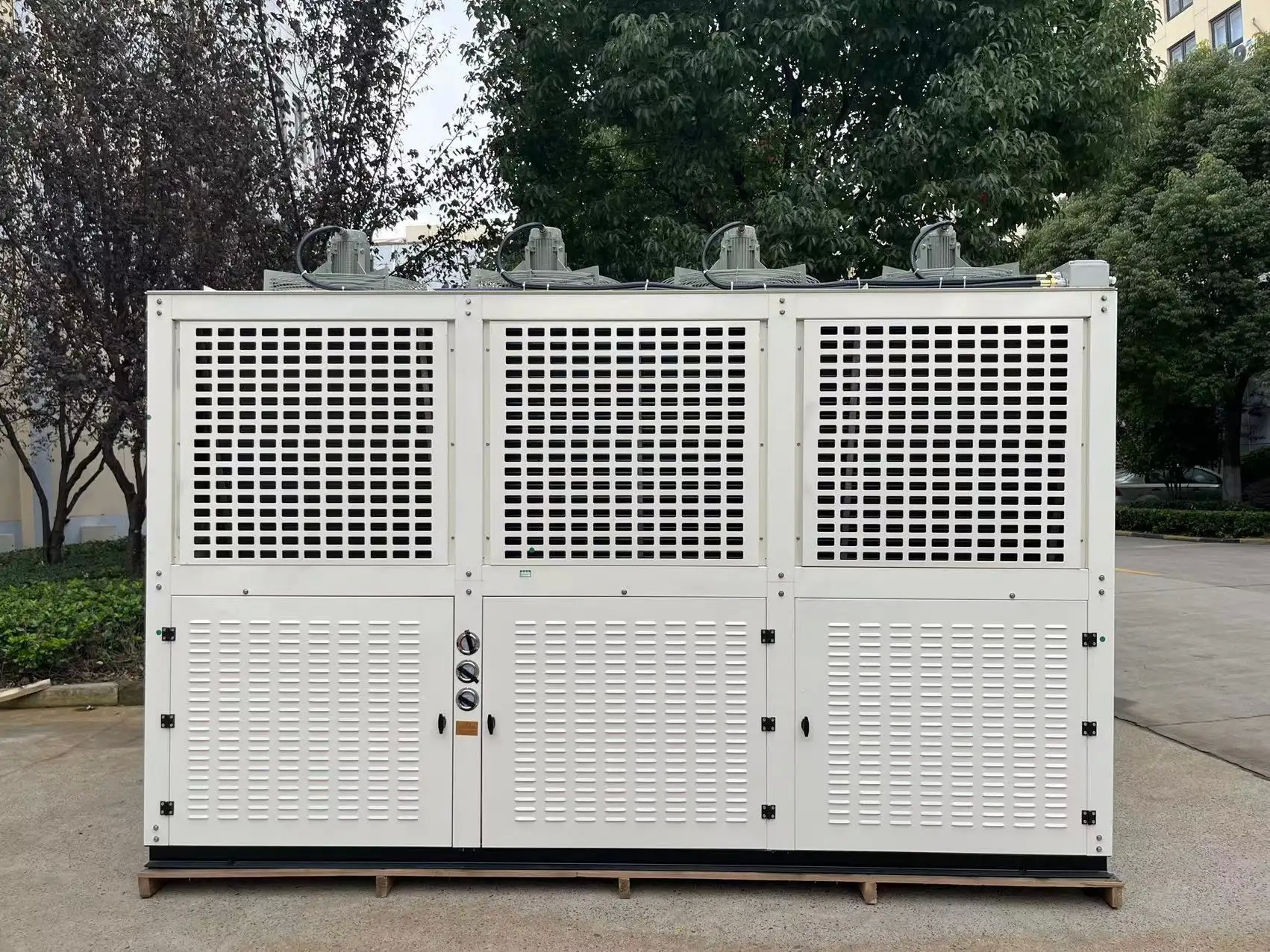

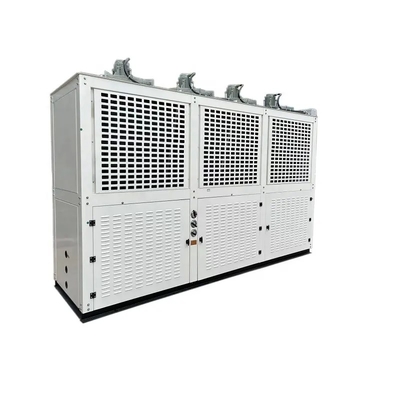

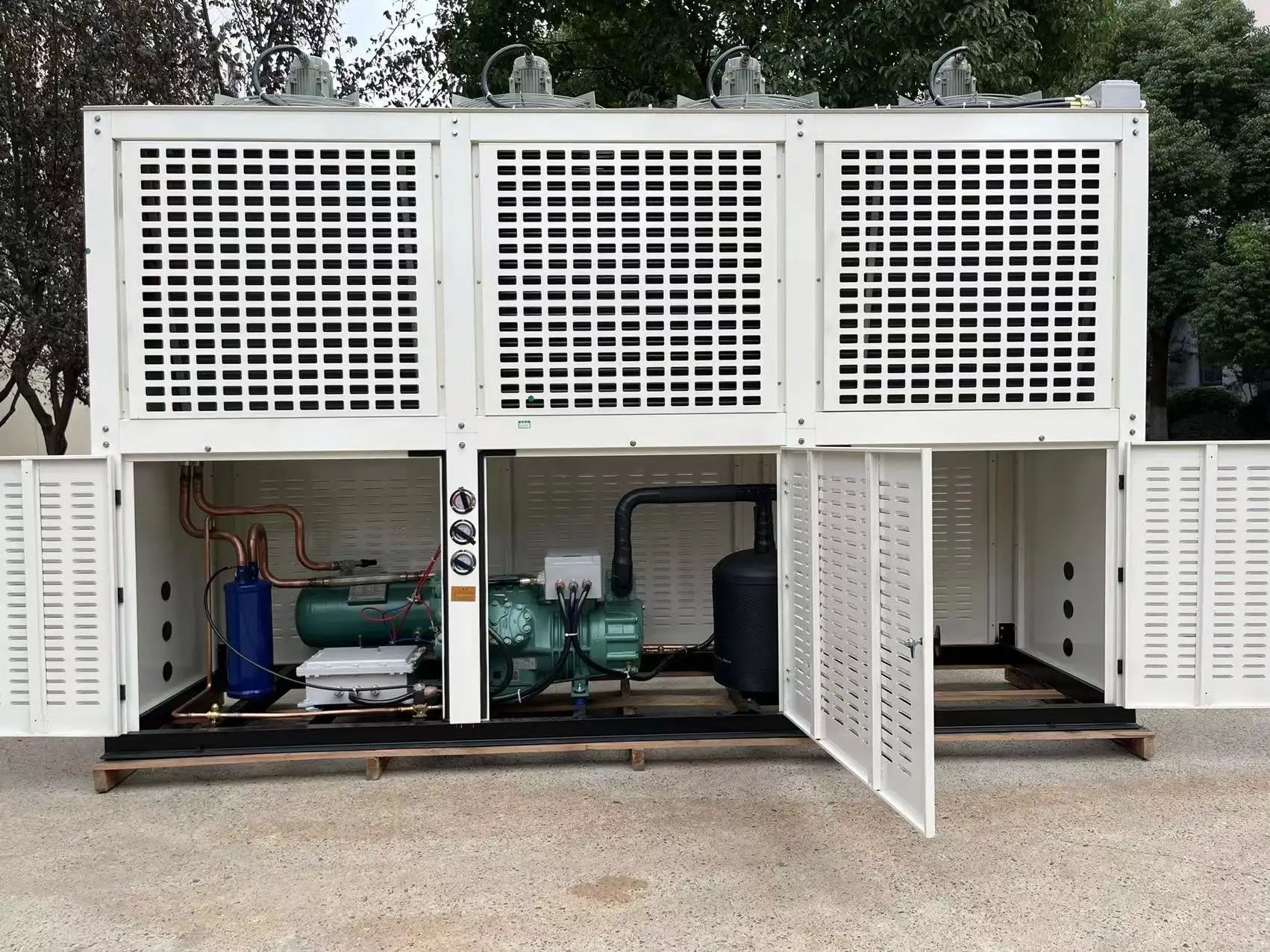

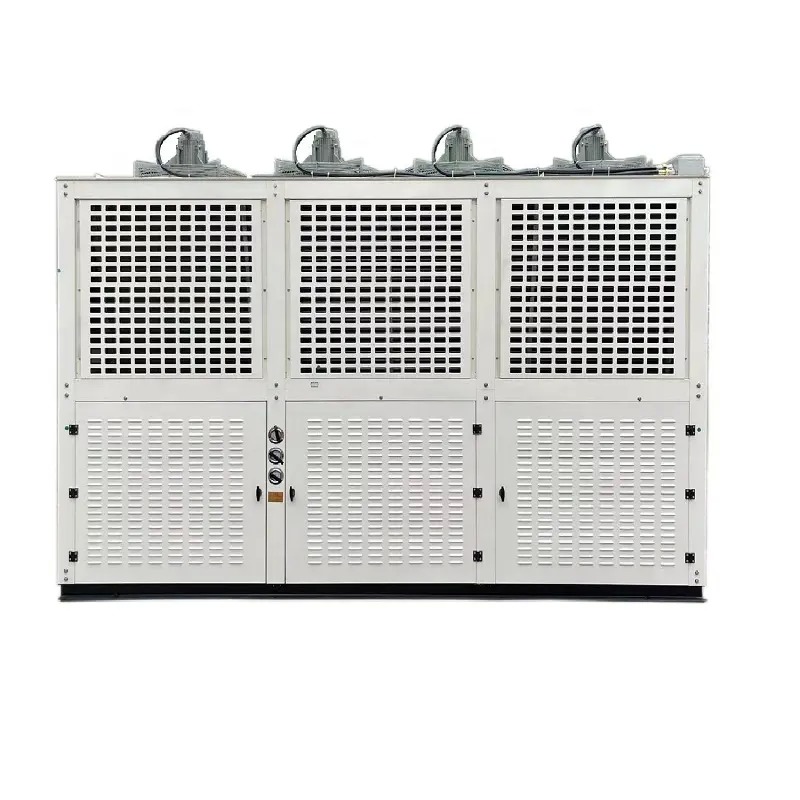

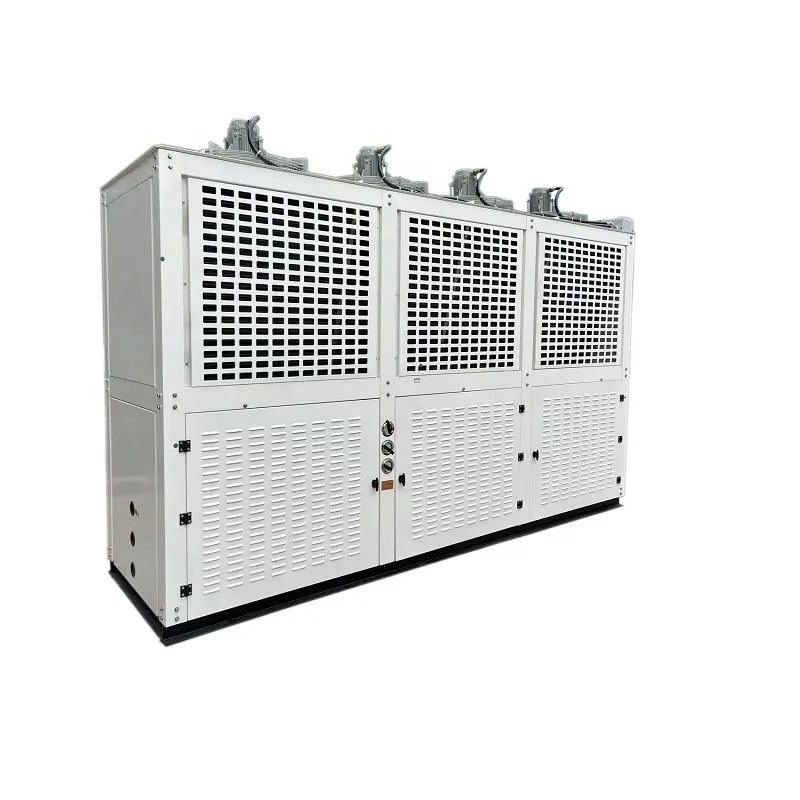

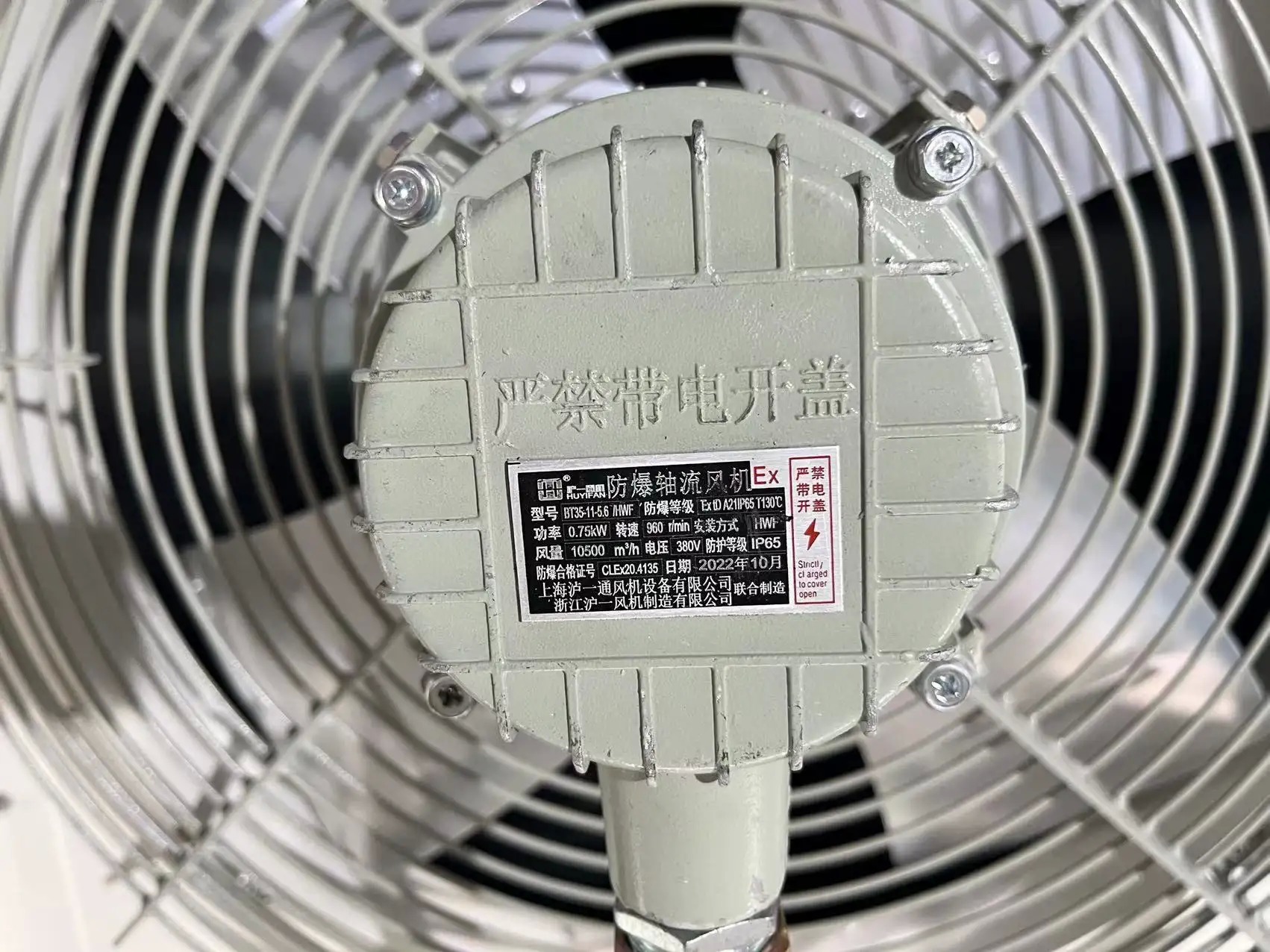

Product Images
Frequently Asked Questions
Q1: Are you a manufacturer or trading company?
A1: We are the factory that produces condensing units, chillers, and evaporators.
Q2: What about the shipping methods?
A2: Available shipping methods include express, air, and sea freight.
Q3: What are the payment methods & terms?
A3: We accept T/T, Paypal, Western Union, and cash. Standard terms are 30% deposit with 70% balance before shipment.
Q4: What's your delivery time and loading port?
A4: Typically 35-60 days after payment. Loading port is Shanghai, or other Chinese ports per your requirements.
Q5: Can I have a sample first?
A5: Samples are available at cost.
Q6: How do you ship the goods and how long does it take to arrive?
A6: We ship via LCL/FCL sea freight (≈30 days), air freight (5-7 days), or express delivery.
Packaging & Warranty
Customization: We provide design services for refrigeration applications in agriculture, food service, chemical industries, and cold storage engineering.
Warranty: KUB offers a comprehensive 1-year warranty. We stand behind our product quality and provide excellent after-sales service.
